What is Globe Valve
Globe valve is one of the most widely used valves, it is popular because of the opening and closing process between the sealing surface of the friction is small, more durable, opening height is not big, easy to manufacture, easy to maintain, not only for low and medium pressure, but also for high pressure. The closing principle of the globe valve is to rely on the pressure of the valve bar, so that the valve sealing surface and the valve seat sealing surface close to prevent the flow of media. Globe valve structure The length is greater than the gate valve, while the fluid resistance, long-term operation, sealing reliability is not strong.
As one of the most important cut-off valves, globe valves play an important role in the aerospace field. As an important component of aerospace equipment, globe valve realizes the functions of medium conveying, stopping and regulating, and its sealing performance directly affects the safe and reliable operation of aerospace equipment. The study of typical globe valve sealing characteristics of the influencing factors and the influence of the law, the valve sealing sub-structure design has a guiding significance, so as to improve the sealing performance and reliability of the valve.
-
Stainless Steel Internal Thread Globe Valve
Temperature of Media: High Temperature, Medium Temperature, Normal Temperature. Media: Steam,
Add to Inquiry -

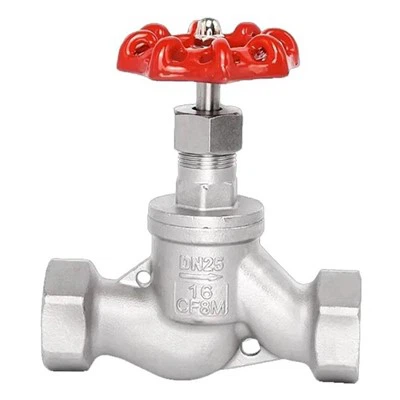

Stainless Steel Thread Manual Globe Valve
Medium temperature: Medium temperature. Medium: Water. Product name: Globe valve. Standard: NPT,
Add to Inquiry -
Brass Forged Valves Flange Globe Valve With Red Handle
Temperature of Media：Normal Temperature. Media：Water. Body material：Forged Brass. Pressure：PN16.
Add to Inquiry -
Red Handwheel Threaded Brass Globe Valve
Media: Water. Application: water pump. Product name: Globe Valve. Body material: brass. Size:
Add to Inquiry
Globe valve working principle and characteristics
Valve in the pipeline where the medium plays an important role in cutting off and throttling, globe valve as an extremely important cut-off type of valve, its sealing is by applying torque to the valve stem, the valve stem in the axial direction to the valve flap pressure, so that the valve flap sealing surface and the valve seat sealing surface close to prevent leakage of media along the sealing surface of the gap between.
Globe valve sealing by the valve sealing surface and the valve seat sealing surface, the valve stem drives the valve flap along the center line of the valve seat for vertical movement. Globe valve opening and closing process start height is small, easy to adjust the flow, and manufacturing and maintenance is convenient, the pressure is applicable to a wide range.
With another commonly used in industrial production cut-off valve a gate valve compared to the structure, globe valve than the former simple, easy to manufacture and maintenance. From the service life, globe valve sealing surface is not easy to wear and abrasion, the valve opening and closing process of valve flap and _ seat sealing surface of the relative sliding, so the sealing surface of the wear and abrasion is small, so improve the service life of the sealing side of the globe valve in the whole closed process of the flap stroke is small, its height is relatively small compared to the gate valve. The disadvantage of the globe valve is that the opening and closing torque is large and difficult to realize the rapid opening and closing, because the valve body flow path is more tortuous, fluid flow resistance, resulting in fluid power in the pipeline loss is large.
Classification of globe valves
direct-flow globe valve
In the direct-flow or Y-shaped globe valve, the valve body flow path and the main flow path into a diagonal, so that the degree of destruction of the flow state than the conventional globe valve is smaller, and thus the pressure loss through the valve is correspondingly small.
Angle type globe valve
In the angle type globe valve, the fluid only needs to change the direction once, so that the pressure drop through this valve is smaller than the conventional structure of the globe valve.
Plunger globe valve
This form of globe valve is a variant of the conventional globe valve. In this valve, the valve flap and seat are usually designed based on the plunger principle. Valve flap polished into a plunger connected to the valve stem, the seal is realized by the two elastic sealing rings set on the plunger. The two resilient seals are separated by a collar and are held in place around the plunger by the load applied to the bonnet by the bonnet nut. The resilient seals are replaceable and can be made of a wide variety of materials. The valve is primarily used for "open" or "closed" applications, but special forms of plungers or special rings are available and can be used to regulate flow.
Application of globe valves
The globe valve is designed in strict accordance with ASME B16.34 standard, widely used in petrochemical pipeline, as well as electric power, metallurgy, textile and other systems.
Specially designed oxygen globe valves are suitable for oxygen pipeline in metallurgical system, as well as oxygen pipeline in other industries to ensure safe and reliable fluid control.
Specially designed for liquefied petroleum gas pipelines or installations and globe valves, applicable to liquefied petroleum gas pipeline system, also applicable to other pipelines with temperature ≤ 80 ℃.
Globe valve stage valve stem does not directly contact with the working medium, according to different shell materials, sealing auxiliary materials, packing materials and stem materials, applicable to different working conditions, such as water, steam, oil pipelines.
Globe valves are widely used in the steam system, applicable to low and medium pressure systems as well as high pressure systems, especially suitable for installation in clean liquids such as steam.
Such as thermal power plants and nuclear power plants of high-temperature and high-pressure pipelines, as well as petrochemical systems of high-temperature and high-pressure pipelines.
Pipelines with caliber less than or equal to 150mm are suitable for water supply and heating projects in urban construction.
Function of Globe valves
The function of globe valve is mainly to cut off or control the flow of fluid.
Globe valve belongs to the forced sealing type valve, by applying pressure to the valve flap to force the sealing surface not to leak.
When the medium enters the valve from below the valve flap, the resistance to be overcome by the operating force is mainly the friction between the valve stem and packing and the thrust generated by the pressure of the medium.
The force to close the valve is greater than the force to open the valve, so the stem diameter should be large enough to prevent the top of the stem from bending failure.
In addition, globe valves can be used to regulate flow, but it should be noted that globe valves are not suitable for long-term use to regulate pressure and flow because their closed surface may be eroded by the medium, thus destroying their closure properties.
