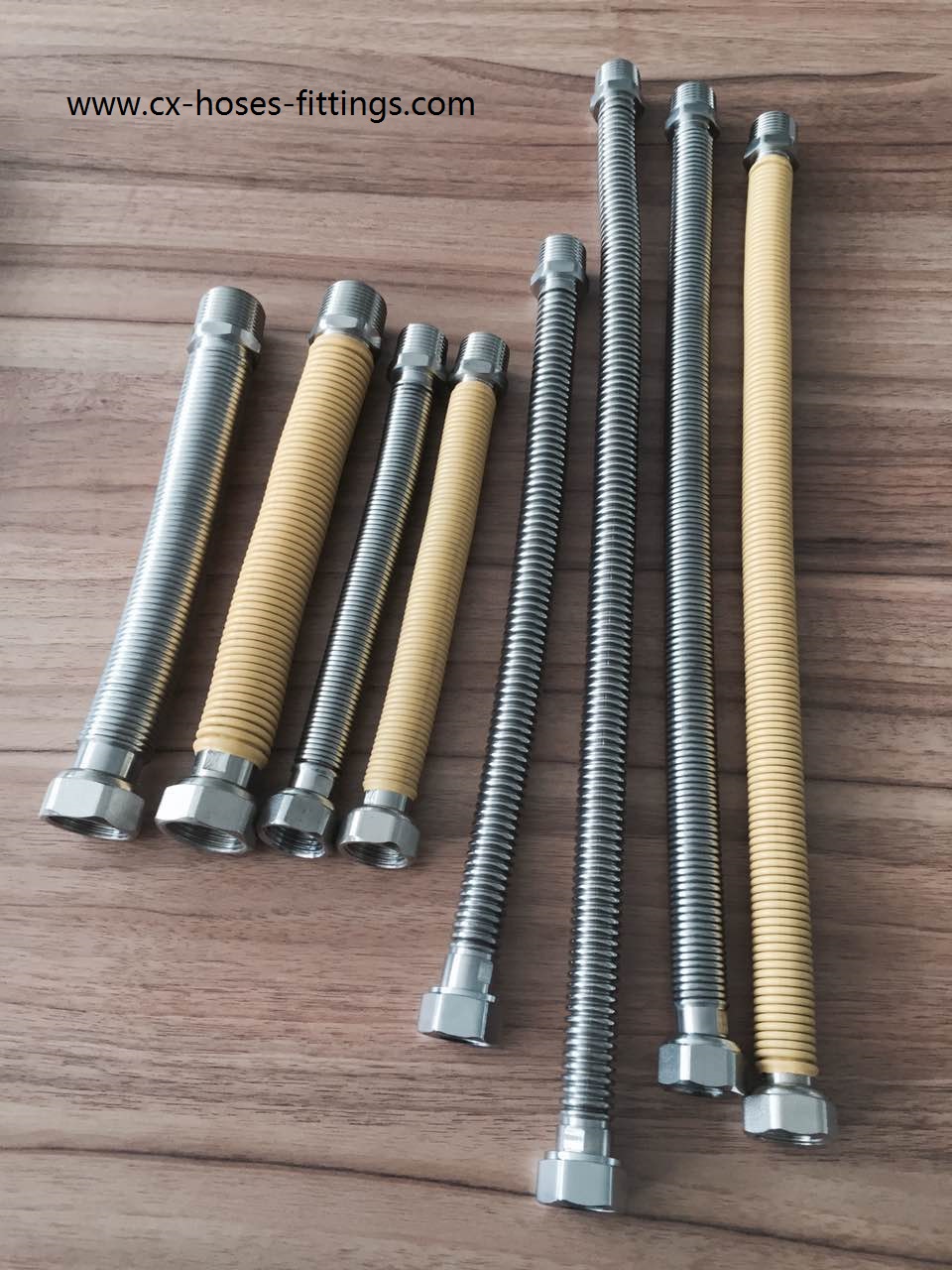

Flexible Stainless Steel Corrugated Hose

Stainless Steel Corrugated Hose for water heater oil gas toilet;
1.Corrugated Pipe: ss304 or ss201;
2.Gasket:Silicon;
3.Nut: Brass nickel-plated or Stainless Steel;
4.Welding Line Type: Spiral Welded;
5.Thickness: 0.4mm;
6.Outer Diameter: 15.8mm/16.8mm/20mm;
7.Dimensions:F1/2"xF1/2";F1/2"xF3/4";F3/4"xF3/4";
8.Length: 30CM to 100CM

Send Inquiry

Download

Description

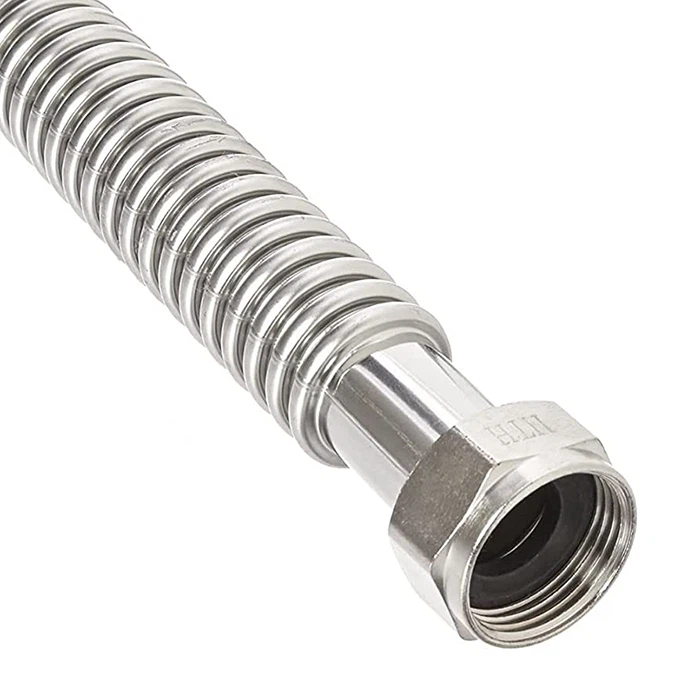

Stainless Steel Corrugated Hose for Water and Gas

Flexible Stainless Steel Corrugated Hose is a flexible pressure-resistant and wear-resistant pipe fitting installed in a liquid or fluid conveying system to compensate the mutual displacement of the pipe, the quick joint or the connection end of the machine and the device, and absorb the vibration energy.

Stainless steel hose has many characteristics such as good flexibility, light weight, corrosion resistance, fatigue resistance, high and low temperature resistance, pressure resistance and wear resistance.

The main part is made of austenitic stainless steel. It has good softness, corrosion resistance, fatigue resistance, high and low temperature resistance , high pressure resistance, long life and so on.

It is suitable for connection between water supply pipe and washbasin, sink, water heater and sanitary wares like toilets, as well as for gas or non-corrosive materials.

Specification

Serial No.	Name	Material
1	Connector	Brass/stainless steel
2	Flat Gasket	Silica gel /EPDM
3	Corrugated Tube	304 stainless steel

Technical Specifications

Outer diameter: 15.8mm/16.8mm/20mm

Working temperature: -40~120℃

Blasting pressure: 3.5MPa

working pressure: 0.6MPa

Length: 30cm,35cm,40cm,45cm...80cm...

Medium: mercury, calcium sulfate, nitric acid, carbon dioxide, formaldehyde, drinking water, sodium hydroxide.

Applications: commercial buildings, automotive exhaust pipes, medical fitness equipment, processing industry.

Connectors

Product Pictures

Certifications

Our Company

Xi'an Changxin Hardware Co. LTD is one credible Flexible Stainless Steel Corrugated Hose Suppliers, who is specializing in all kinds of hoses, pipe fittings and valves. We offer the best hoses at the most competitive price. Wholesale Shower Hose Price.
