Stainless Steel Flange Coupling With Pressing Stainless Steel Pipe

Application: Pipe flanges, Equipment flanges
ZIC: Cold/Hot
Standard or Nonstandard: Standard
Surface Treatment: Pickled,polish
Characteristic: High pressure and corrosion resistance
Process: Cutting/Bending/Leveling/Turning/Punching
Customized: Yes
OEM: Yes

Send Inquiry

Description

Products Description

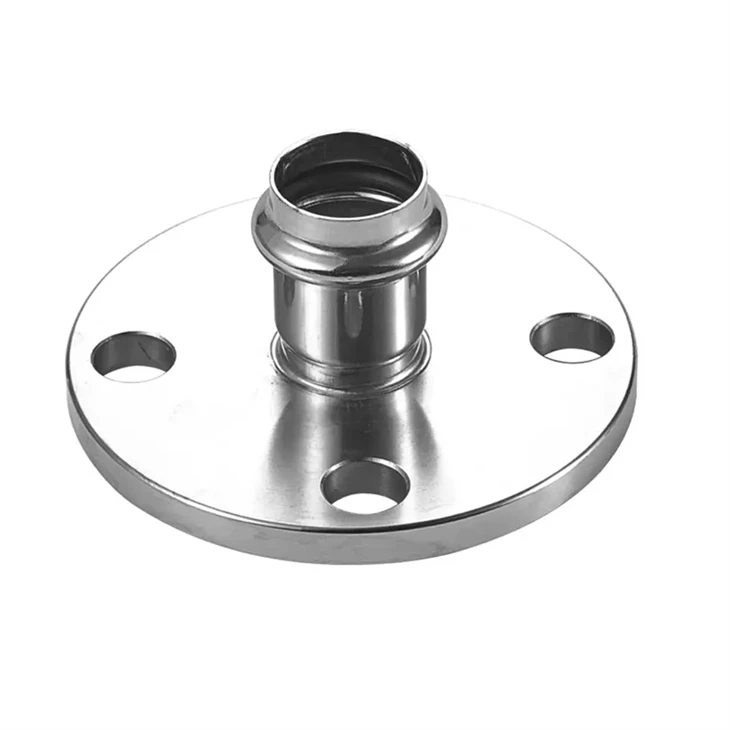

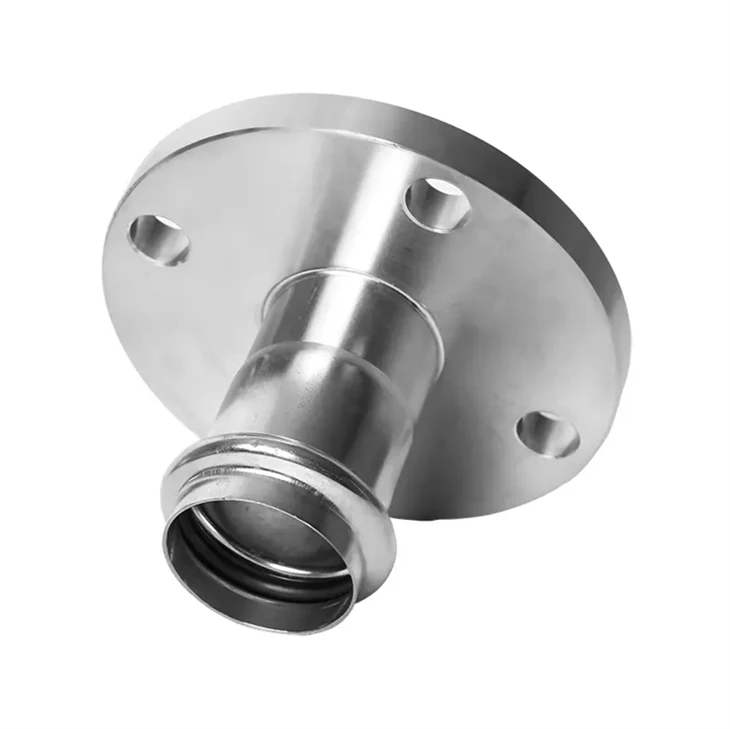

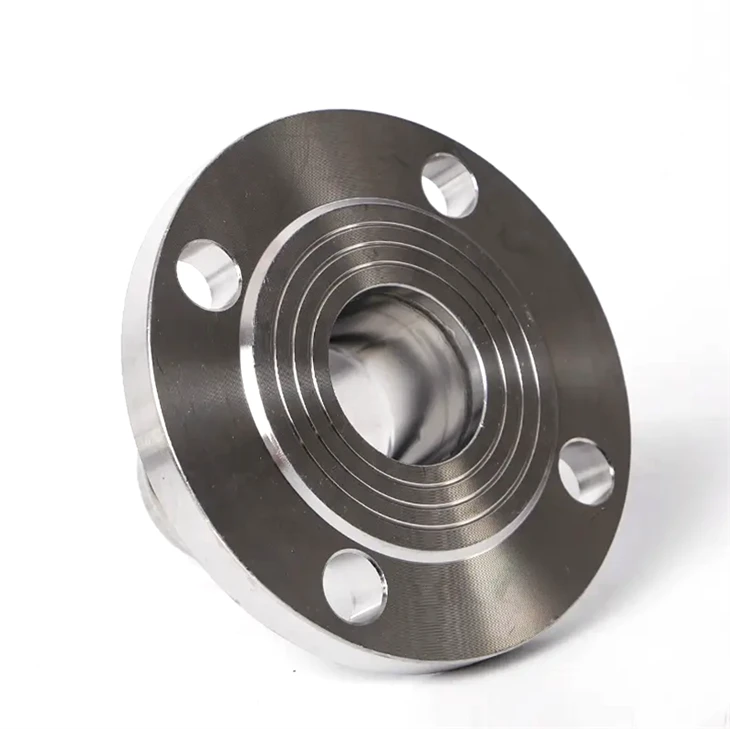

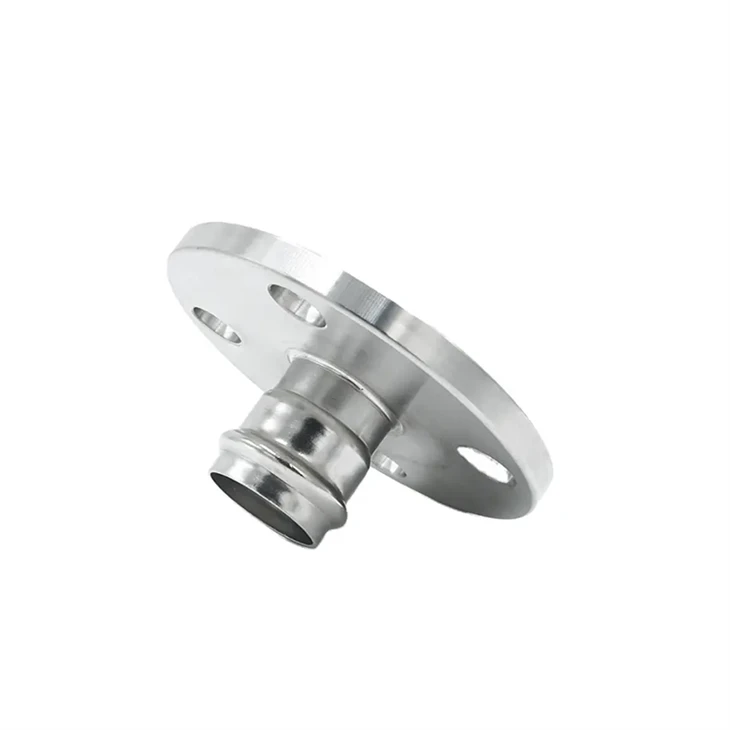

Stainless Steel Flange Coupling with Pressing Stainless Steel Pipe

Flange coupling, is a kind of apparatus applied to flange sealing. It is characterized by small size, light weight and good elasticity.

Standard:	ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API Color Silver Standard
Certification:	ISO9001,ISO14001,ISO45001
Place of Origin:	China,Guangdong
Brand Name:	Cxbelieving
Product name:	Pressfittings V-Profile Flange Coupling
Size:	OD15 - 108, PN10/16/25
Type:	Pressfittings V-Contour
Material:	Stainless Steel 304/316L
Seal Material:	EPDM / SI / NBR / HNBR / FKM
Application:	Use for Air, Natural Gas, Oil, Steam, Water. Temperature
Woking pressure:	≤1.6 Mpa
Temperature Range:	-10degree to +150degree
Tolerance:	± 5%

For bolted flange couplings working under high temperature for a long time, due to creep relaxation of sealing gaskets and bolts, the residual stress on the gaskets gradually decreases, the sealing reliability of the flange joints gradually decreases, and eventually leads to leakage failure. To solve the sealing problem of flange joints, high temperature sealant can be used for sealing, which is suitable for working conditions that require high temperature and pressure for smooth and flat sealing surface.

If you want to know more information, please contact sales2@cx-hoses-fittings.com.
