Hex Reducing Nipple
Material: High quailty stainless steel AISI 201, 304, 316, 304L, 316L
Standard: ANSI, DIN, JIS, BS, GB, JIS, etc.
Function: Connecting the pipeline
Thread: NPT,BSPT, BSP, DIN2999
Pressure: 150lbs
Technology: Stainless steel investment casting+ CNC maching
Description
Hex Reducing Nipple can seal the steel pipe and the elbow directly by using a threaded connection. It is easy to operate, fast, safe and time-saving. It does not need to be welded when connecting with steel pipes, which is good for fireproof, explosion-proof and high-altitude operations, and can eliminate the disadvantages caused by inadvertent welding. It has the characteristics of firm connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, and safe and reliable work.
The products are all imported CNC lathe production and processing. With international advanced production technology, the products are processed by imported tools, standard plug gauge measurement, fine workmanship and reliable quality.
Parameters
| Nominal Size | A(Min) | W(Min) | E(Min) | b | C(Min) | F(Min) | ||
| DN | Inch | 3000 | 6000 | |||||
| 6 | 1/8" | 11 | 26 | 10 | 5 | 2 | 6 | - |
| 8 | 1/4" | 15 | 36 | 15 | 8 | 6 | 6 | - |
| 8*6 | 1/4"*1/8" | 15 | 31 | 15 | 5 | 2 | 6 | 10 |
| 10 | 3/8" | 18 | 40 | 16 | 11 | 8 | 8 | - |
| 10*8 | 3/8"*1/4" | 18 | 39 | 16 | 8 | 6 | 8 | 15 |
| 15 | 1/2" | 22 | 48 | 20 | 14 | 11 | 8 | - |
| 15*10 | 1/2"*3/8" | 22 | 44 | 20 | 11 | 8 | 8 | 16 |
| 15*8 | 1/2"*1/4" | 22 | 43 | 20 | 8 | 6 | 8 | 15 |
| 20 | 3/4" | 27 | 52 | 21 | 19 | 13 | 10 | - |
| 20*15 | 3/4"*1/2" | 27 | 50 | 21 | 14 | 11 | 9 | 20 |
| 20*10 | 3/4"*3/8" | 27 | 46 | 21 | 11 | 8 | 9 | 16 |
| 25 | 1" | 35 | 60 | 25 | 24 | 17 | 10 | - |
| 25*20 | 1"*3/4" | 35 | 56 | 25 | 19 | 13 | 10 | 21 |
| 25*15 | 1"*1/2" | 35 | 55 | 25 | 14 | 11 | 10 | 20 |
| 40 | 1-1/2" | 50 | 68 | 26 | 38 | 30 | 16 | - |
| 40*25 | 1-1/2"*1" | 50 | 67 | 26 | 24 | 17 | 16 | 25 |
| 40*20 | 1-1/2"*3/4" | 50 | 63 | 26 | 19 | 13 | 16 | 21 |
| 40*15 | 1-1/2"*1/2" | 50 | 62 | 26 | 14 | 11 | 16 | 20 |
| 50 | 2" | 62 | 71 | 27 | 49 | 39 | 17 | - |
| 50*40 | 2"*1-1/2" | 62 | 70 | 27 | 38 | 30 | 17 | 26 |
| 50*25 | 2"*1" | 62 | 70 | 27 | 24 | 17 | 18 | 25 |
| 50*20 | 2"*3/4" | 62 | 65 | 27 | 19 | 13 | 17 | 21 |
| 50*15 | 2"*1/2" | 62 | 65 | 27 | 14 | 11 | 18 | 20 |
Dimensions in millimeter.
Application
Water oil and gas solvent papermaking pharmaceutical natural acid acidic alkaline liquid and some corrosive liquids.
Our Company

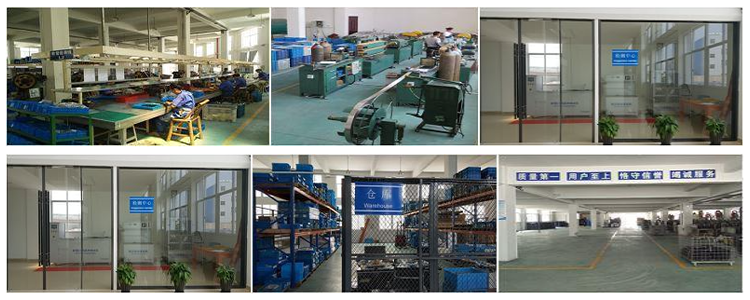

Workshop, warehouse and inspection center
Exhibition Photos
Shipping & Payment
Product sales area: The most countries of Asia, Europe, Africa, South America and North America.
Packaging: General exporting cartons+pallets (if customer requests)
Transport method: By sea, by air or by rail (samples by express)
MOQ: 500PCS each item
Payment terms: T/T or L/CIf you want to know more information, please contact sales2@cx-hoses-fittings.com
