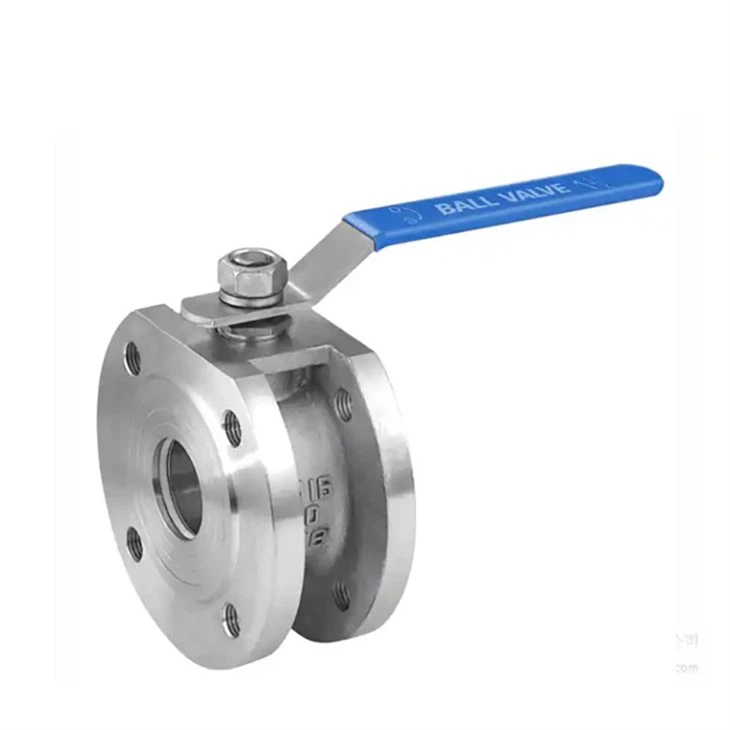

Stainless Steel Wafer Type Flange Manual Ball Valve
Temperature of Media：Medium Temperature
Media：Gas
Material：Stainless Steel
Power：Hydraulic
Connection：Flange, RF, FF, Screw, FNPT
Working pressure：1.0-1.6Mpa (10-25bar)
connection type：internal thread
Application：General
Description
Products Description
Stainless Steel Wafer Type Flange Manual Ball Valve
Stainless steel ball valves can be closed tightly with only a 90-degree rotation operation and a small turning torque. Completely equal valve body cavity for the medium to provide very little resistance, straight through the flow path. The main feature of the ball valve is its own compact structure, easy to operate and maintain, stainless steel ball valves can be used to control the flow of various types of fluids such as air, water, steam, a variety of corrosive media, slurry, oil, liquid metals and radioactive media. The ball valve body can be integral or combined. This type of valve should generally be installed horizontally in the pipeline.
|
MOQ |
1 Set |
Thread Type |
Without Thread |
|
Applicable Standard |
ANSI |
No. of Ways |
2 Way |
|
Port Size |
1/2 inch |
End Connection |
Wafer |
|
Operating Pressure |
ANSI Class 150 |
Media |
Water, Oil, Gas |
|
Body Material |
Stainless Steel |
Temp. of Media |
-10°C to 180°C |
|
Valve Ball |
Stainless Steel |
Certification |
ISO 9001, CE, TUV, SGS |
|
Sealing Material |
PTFE |
Warranty |
1 Year (12 Months) |
|
No. |
Component |
Material |
|
|
1 |
Body |
CF8M |
|
|
2 |
Cap |
CF8M |
|
|
3 |
Joint Gasket |
PTFE |
|
|
4 |
Ball |
Stainless Steel |
|
|
5 |
Seat |
PTFE |
|
|
6 |
Thrust Washer |
PTFE |
|
|
7 |
Stem |
Stainless Steel |
|
|
8 |
Packing |
PTFE |
|
|
9 |
Gland Bush |
Stainless Steel |
|
|
10 |
Nut |
Stainless Steel |
|
|
11 |
Handle |
Stainless Steel |
|
|
12 |
Handle Cover |
PVC |
|
|
Size |
d |
D |
D1 |
D2 |
L |
b |
f |
4-M |
E |
|
1/2" |
15 |
98 |
58 |
42 |
38 |
16 |
2 |
4-M12 |
150 |
|
3/4" |
20 |
98 |
58 |
75 |
38 |
18 |
2 |
4-M12 |
150 |
|
1" |
25 |
105 |
68 |
85 |
43 |
18 |
2 |
4-M12 |
165 |
|
1-1/2" |
38 |
150 |
88 |
110 |
62 |
18 |
3 |
4-M16 |
195 |
|
2" |
50 |
165 |
102 |
125 |
72 |
18 |
3 |
4-M16 |
195 |
The working principle of the ball valve is to rotate the spool to make the valve open or closed. Ball valve switch lightweight, small size, can be made into a large caliber, reliable sealing, simple structure, easy maintenance, sealing surface and the ball surface is often in a closed state, is not easy to be eroded by the medium, in various industries are widely used.
If you want to know more information, please contact sales2@cx-hoses-fittings.com.
