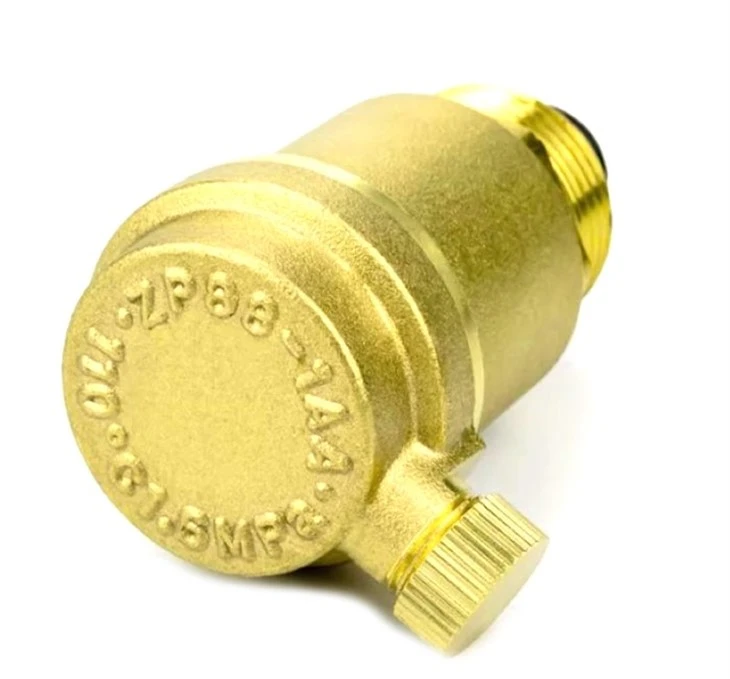

Floor Heating System Brass External Thread Exhaust Valve
Product Name：Exhaust Valve
Length：5cm/ customized
Connection：3/4"male thread
Thread：NPT 15MM
Material：Brass
Maximum Pressure：1mpa
Set temperature(℃)：95 ° C / 99 ° C Optional
Set pressure(Mpa)：0.6Mpa
shape：nipple
nominal wall thickness:：4
Function：Protecting System
Description
Products Description
Floor Heating System Brass External Thread Exhaust Valve
Brass Automatic Air Vent Valve：
1.The exhaust mechanism is very reliable and is cast from high-precision components.
2.This valve features high temperature resistance, rust protection, reliably sealing.
3.The steam and water separation tray is designed with special structure to ensure that the water will not be discharged during exhaust. As long as the system has pressure, the exhaust valve will continue to vent.
4.It is convenient to demount and maintenance, while the water in the system will not flow out, so there is no need to empty the system.
5.The steam and water separation tray is designed with special structure to ensure that the water will not be discharged during exhaust.
|
Type |
Exhaust Valve |
|
Customized support |
OEM |
|
Application |
Water pipe/fire pipe/central air conditioning, etc |
|
Temperature of Media |
Normal Temperature |
|
Power |
Automatic |
|
Structure |
Exhaust |
|
Material |
Brass |
|
Pressure |
PN16 |
|
Quality |
High-Quality |
|
Service |
24hours Online Service |
Exhaust valves are used for exhausting pipes in independent heating systems, central heating systems, heating boilers, central air-conditioning, underfloor heating and solar heating systems.
If you want to know more information, please contact sales2@cx-hoses-fittings.com.
