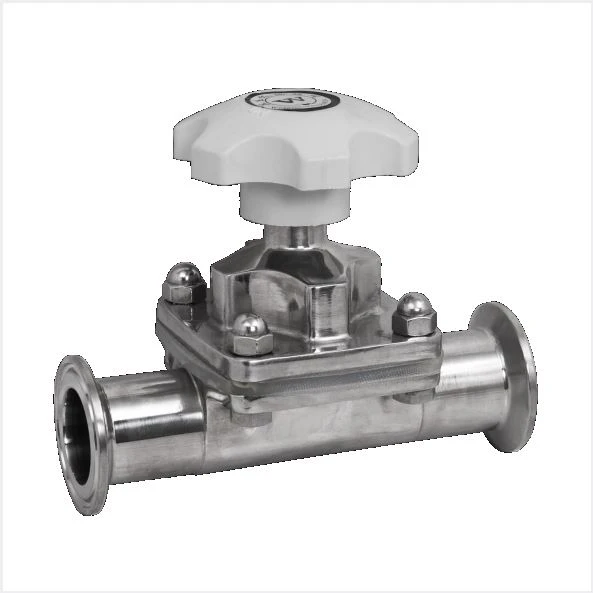

Sanitary Tri Clamp Diaphragm Valve
Standards:DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE
Valve body:AISI-316L or 304
Sealing:EPDM+PTFE or EPDM
Size:1/2"-21/2"(DN10-65)
MOQ: 500PCS each item
Packaging: General exporting cartons+pallets (if customer requests)
Transport method: By sea, by air or by rail (samples by express)
Sample: Free Sample Available
Description
Sanitary Tri Clamp Diaphragm Valve is suitable for food, beverage, dairy, brewing, pharmaceutical and other industries, with good flow control and opening and closing performance.
The sealing material complies with the FDA177.2600 standard. Using patented technology, the diaphragm adopts a combination of EPDM and PTFE, and is fixed with stainless steel bolts. The sealing part in contact with the medium is made of PTFE material, which has good cold resistance to -13°F (-25°C), excellent heat resistance 482°F (+250°C), resistance to most chemicals, And excellent wear resistance to media flow.
Specification
| Valve body | AISI-316L or 304 |
| Sealing | EPDM+PTFE or EPDM |
| Standards | DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE |
| End connection | butt welding, sanitary clamp, or other requirements |
| Valve body type | T-shaped three-way, U-shaped three-way, mini type, tank bottom type, etc. |
| Operation | manual or pneumatic |
| Manual selection | plastic or stainless steel handwheel |
| Maximum working pressure | 147psi (10bar) |
| Temperature range | 14~248℉ (-10 ~ 120℃), EPDM rubber |
| Internal polishing | Ra 16-32µ in (0.4~0.8 microns; meters) |
| Can be used for CIP/SIP | |
Our Company
Exhibition Photos
Shipping & Payment
Product sales area: The most countries of Asia, Europe, Africa, South America and North America.Packaging: General exporting cartons+pallets (if customer requests)
Transport method: By sea, by air or by rail (samples by express)
MOQ: 500PCS each item
Payment terms: T/T or L/C
