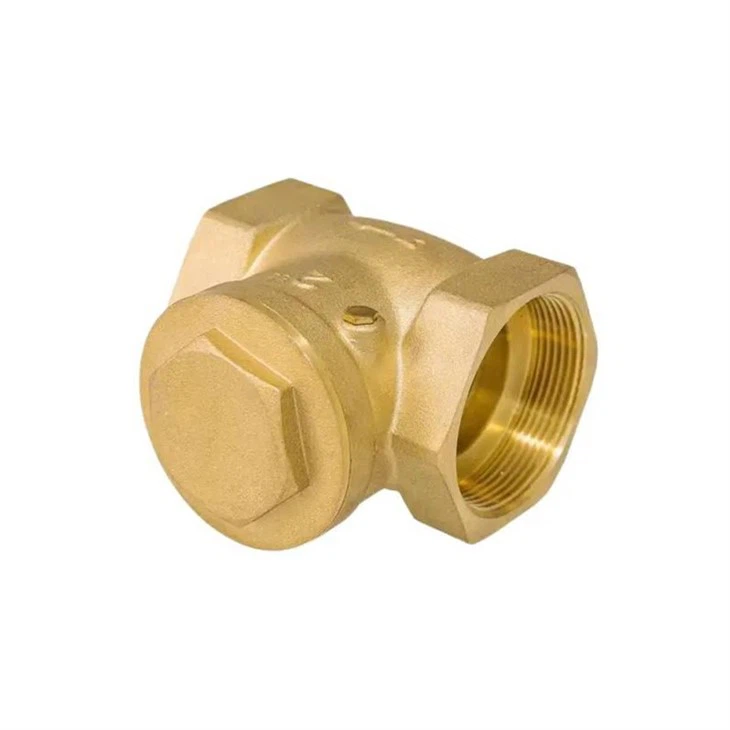

High Pressure Brass Horizontal Non Return Valve
Power: Hydraulic
Temperature of Media: Normal Temperature
Structure: Check
Media: Water
Customized support: OEM, ODM, OBM
Product name: Brass Check Valve
Body material: Brass
Connection: Female Thread
Working pressure: 1.6Mpa
Description
Products Description
High Pressure Brass Horizontal Non Return Valve
Horizontal check valve, also known as check valve, its role is to prevent the backflow of media in the pipeline. The opening and closing parts rely on the flow of media and the power to open or close, in order to prevent the medium backflow valve called check valve. Check valve belongs to the automatic valve class, mainly used for one-way flow of media on the pipeline, only allows the media to flow in one direction to prevent accidents!
|
Type: |
Water Connection Parts |
|
Model: |
HB 10 |
|
Place Of Origin: |
India |
|
Certification: |
ISO 9001:2015 And Ce Quality Certified |
|
Size: |
1" 2", 1/2", 3/4", 1-1/4", 1-1/2" |
|
Material: |
Brass Forged |
|
Finishing: |
Chrome |
|
Packaging: |
One Piece Box |
|
Product specifications/dimensions |
L |
d |
H |
|
|
G1/2'' |
DN15 |
46 |
13 |
32.5 |
|
G3/4'' |
DN20 |
55 |
18 |
38.5 |
|
G1'' |
DN25 |
62 |
22 |
43.5 |
|
G1-1/4'' |
DN32 |
71 |
31 |
56 |
|
G1-1/2'' |
DN40 |
80 |
38 |
63 |
|
G2'' |
DN50 |
95 |
45 |
76 |
|
Customized |
Customized |
Customized |
Customized |
|
Horizontal check valve is suitable for nominal pressure PN1.0MPa ~ 42.0MPa, Class150-2500; nominal diameter DN15 ~ 1200mm, NPS1/2 ~ 48; operating temperature -196 ~ 540 ℃ on a variety of pipelines, used to prevent the media backflow. By choosing different materials, it can be applied to a variety of media such as water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea.
If you want to know more information, please contact sales2@cx-hoses-fittings.com.
