Sanitary Pneumatic Butterfly Valve
Size: 3/4"～6", DN20～DN150
Connection method: welding, clamp, thread, flange
Max working pressure: ≤10bar
Compressed air connection: gas pipe joint G1/8"
Working temperature: -10℃ to 120℃
Parts in contact with materials: SS304/SS316L
Seals: EPDM, silicone rubber (SI), fluorine rubber (FPM)
Description
Pneumatic butterfly valve is composed of pneumatic actuator and butterfly valve.
Sanitary Pneumatic Butterfly Valve is a control valve with a microprocessor that can realize the intelligent control function. The intelligence of the control valve usually takes the following forms:
a. Pneumatic control valve with intelligent valve positioner;
b. Intelligent electric control valve; pneumatic control valve with fieldbus intelligent valve positioner. The intelligent control function' mainly includes the following contents
a. Easily modify control valve flow characteristics.
b. Realize PID control operation.
c. Realize other computing functions, such as range setting for split-range control, nonlinear compensation computing, etc.
d. Change the forward and reverse action modes of the control valve.
e. Realize the communication with the host computer, - realize the information sharing. L realizes the fault diagnosis and alarm of the control valve.
g. Realize the self-locking of the control valve.
h. The advantages of using an intelligent valve positioner are as follows to realize the status information management of the control valve, etc.
a. Reduce control loop installation, verification and commissioning time.
b. The use of diagnostic functions enables the control valve to be used. The lifespan is extended, and the operation status can be monitored in time.
c. Reduce the skill requirements for instrument maintenance personnel.

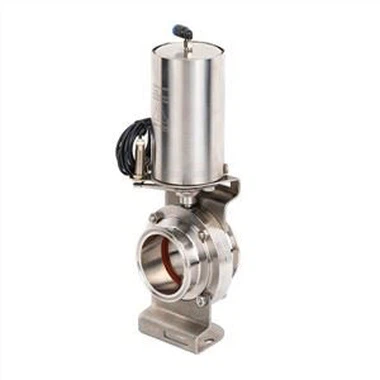

Sanitary Intelligent Pneumatic Stainless Steel Butterfly Valve with Smart Valve Positioner.
The structure of this type of control valve is the same as that of the ordinary control valve. Because of the intelligent valve positioner, the control valve has intelligent functions.
Technical Parameters
Size: 3/4"～6", DN20～DN150
Connection method: welding, clamp, thread, flange
Max working pressure: ≤10bar
Compressed air connection: gas pipe joint G1/8"
Working temperature: -10℃ to 120℃
Parts in contact with materials: SS304/SS316L
Seals: EPDM, silicone rubber (SI), fluorine rubber (FPM)
