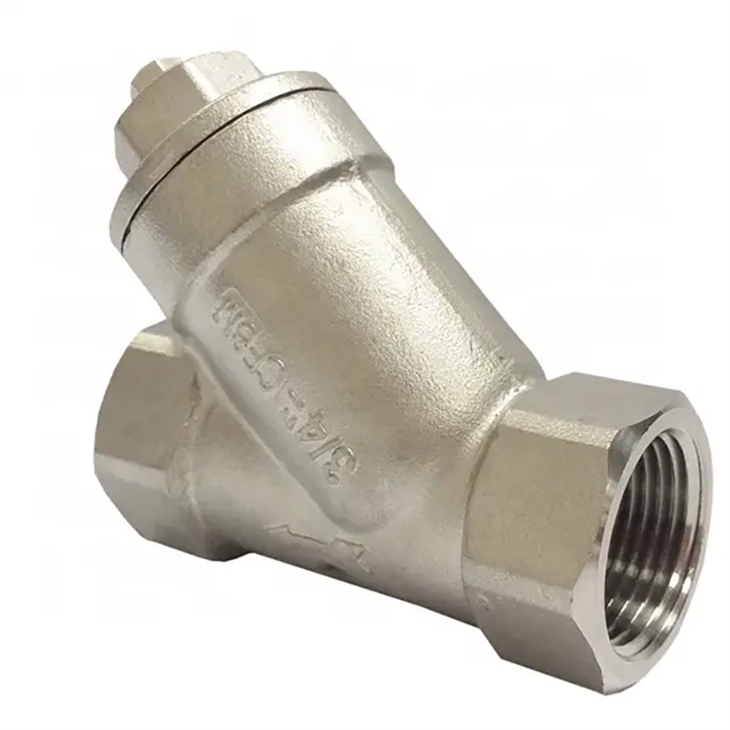

Stainless Steel Y Shaped Pipe Filter
Product name: Y-strainer
Applicable Temperature: ≤425 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN10-PN40, 150LB-600LB
Size Range: 1/2" ~ 4"(DN15-DN100)
Operation: Manual/Electric/Pneumatic
Technology: Investment casting
Keyword: Strainer
Packing: Wooden Case
Description
Products Description
Stainless Steel Y Shaped Pipe Filter
Y-type filter is an indispensable filtration device in the pipeline system of conveying medium, Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, water level valve or other equipments, which is used to remove impurities in the medium in order to protect the normal use of the valve and the equipments.
|
Specification |
Customized,customer required,customer's drawings |
|
Material |
stainless steel;304 CF8 1.4308 304L CF3 1.4308 316 CF8M 1.4408 316L CF3M 1.4404 1.4409 WCB 1.0619 Carbon Steel; Alloy Steel;Copper alloy etc. |
|
We test every furnace chemical component before pouring by spectrometer |
|
|
Application |
Automobile, agricultural machinery, furniture,construction, home appliances, electronics.etc. |
|
Process |
Silicon sol precision casting |
|
Machining |
CNC machining center, CNC lathe |
|
Casting tolerance |
IT4 - IT7 |
|
Machining tolerance |
+/- 0.005mm,ISO2768-f |
|
Standard |
DIN,JIS,ASTM,GOST,ISO,BS |
|
Heat treatment |
Available |
|
Weight range |
0.002-100kg |
|
casting machine specification |
200T |
|
Finish |
Acid cleaning and passivation |
|
Surface treatment |
Electrochemical polish.mirror polish. As customers' requirements |
Y-type filter has the features of advanced structure, small resistance, convenient drainage, etc. Y-type filter can be applied to the medium of water, oil and gas.
If you want to know more information, please contact sales2@cx-hoses-fittings.com.
